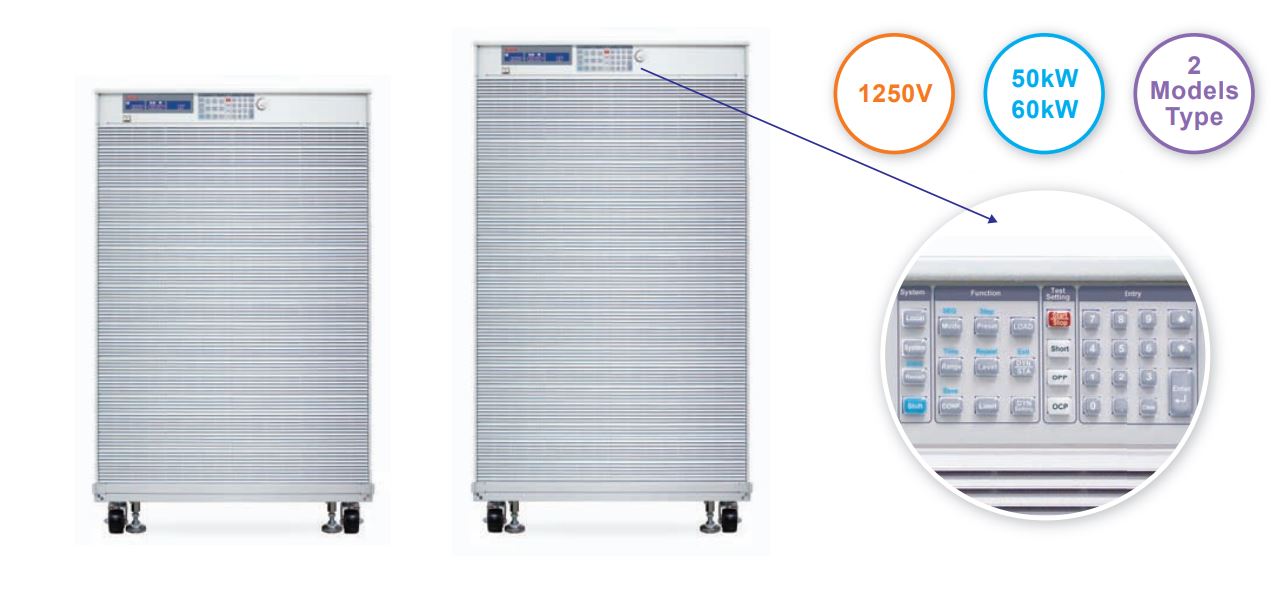

36300E Series High Power DC Electronic Load

PRODUCT



36360E 시리즈는 최대 60kW 1250V 300A, 병렬 연결로 최대 8대 320까지 확장이 가능한 고용량 DC전자부하기 입니다

특징

◐ Maximum power up to 480KW
◐ Maximum up to 8 units master / slave parallel control
◐ 5 digit V/A/W Meter.
◐ High-speed measurement and communication transmission.
◐ Large LCD Display、setting values can be adjusted by rotary knob or push button.
◐ Voltage、Current and Watt value can be displayed simultaneously.
◐ Capable for Power Factor Correction (PFC) Test.
◐ OCP、OPP test function automatically.
◐ Power ON status can be set.
◐ CC, CR, CV, CP, Dynamic and Short operation mode.
◐ SHORT time setting.
◐ Protections against I,W,°C and over-voltage alert.
◐ Voltage meter display the polarity positive（”＋”） or negative（”－”）is selectable.
◐ Support MPPT CC、CR、CV test function for solar panel
◐ Optional Interface : GPIB、RS232、USB、LAN.
◐ Optional 9923 load current waveform generator to provide the battery actual dischargee current waveform simulation (option)
