36000A Series

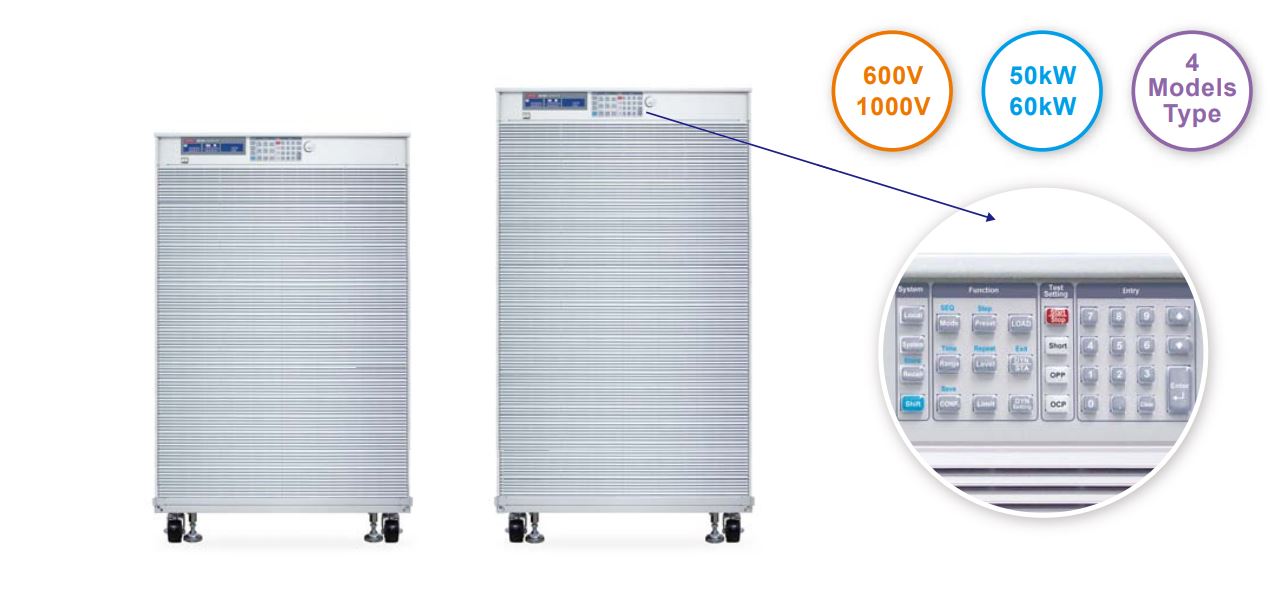

36000A Series High Power DC Electronic Load
- 용량50 ~ 60kW
- 전압600V, 1000V
- 전류210 ~ 600A
- 기타8대 병렬연결로 최대 480kW 확장 가능
- 예상가격 견적문의
PRODUCT
36000 Series는 0 ~ 1000V, 0 ~ 600A, 50 ~ 60KW의 고효율 Compact High Power DC Electronic Load입니다.
병렬 연결을 통해 최대 8대 480kW까지 확장이 가능합니다.
특징
◐ Maximum power up to 480KW
◐ Maximum up to 8 units master / slave parallel control
◐ 5 digit V/A/W Meter.
◐ High-speed measurement and communication transmission.
◐ Large LCD Display、setting values can be adjusted by rotary knob or push button.
◐ Voltage、Current and Watt value can be displayed simultaneously.
◐ Capable for Power Factor Correction (PFC) Test.
◐ OCP、OPP test function automatically.
◐ Power ON status can be set.
◐ CC, CR, CV, CP, Dynamic and Short operation mode.
◐ SHORT time setting.
◐ Protections against I,W,°C and over-voltage alert.
◐ Voltage meter display the polarity positive（”＋”） or negative（”－”）is selectable.
◐ Optional Interface : GPIB、RS232、USB、LAN.
