34000C Series

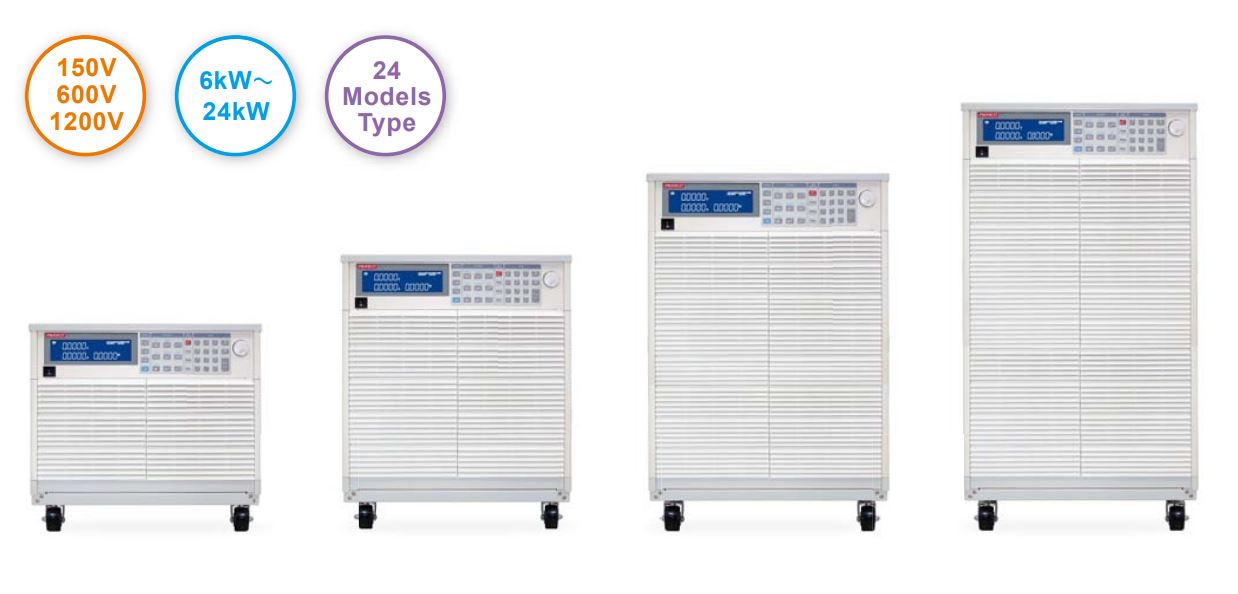

34000C Series High Power DC Electronic Load

PRODUCT



34000C시리즈는 기존 제품보다 경량화 되어 19인치 랙에 맞는 사이즈로 제작되었으며 최대 1200V, 6 ~ 24kW, 8대 까지 병렬 연결로 192kW까지 확장이 가능합니다.

특징

◐ Maximum power up to 192KW
◐ Maximum up to 8 units master / slave parallel control
◐ 5 digit V/A/W Meter.
◐ High-speed measurement and communication transmission.
◐ Large LCD Display、setting values can be adjusted by rotary knob or push button.
◐ Voltage、Current and Watt value can be displayed simultaneously.
◐ Capable for Power Factor Correction (PFC) Test. (for 600V,1200V models)
◐ OCP、OPP test function automatically.
◐ Power ON status can be set.
◐ CC, CR, CV, CP, Dynamic and Short operation mode.
◐ SHORT time setting.
◐ Protections against I,W,°C and over-voltage alert.
◐ Voltage meter display the polarity positive（”＋”） or negative（”－”）is selectable.
◐ Optional Interface : GPIB、RS232、USB、LAN.
