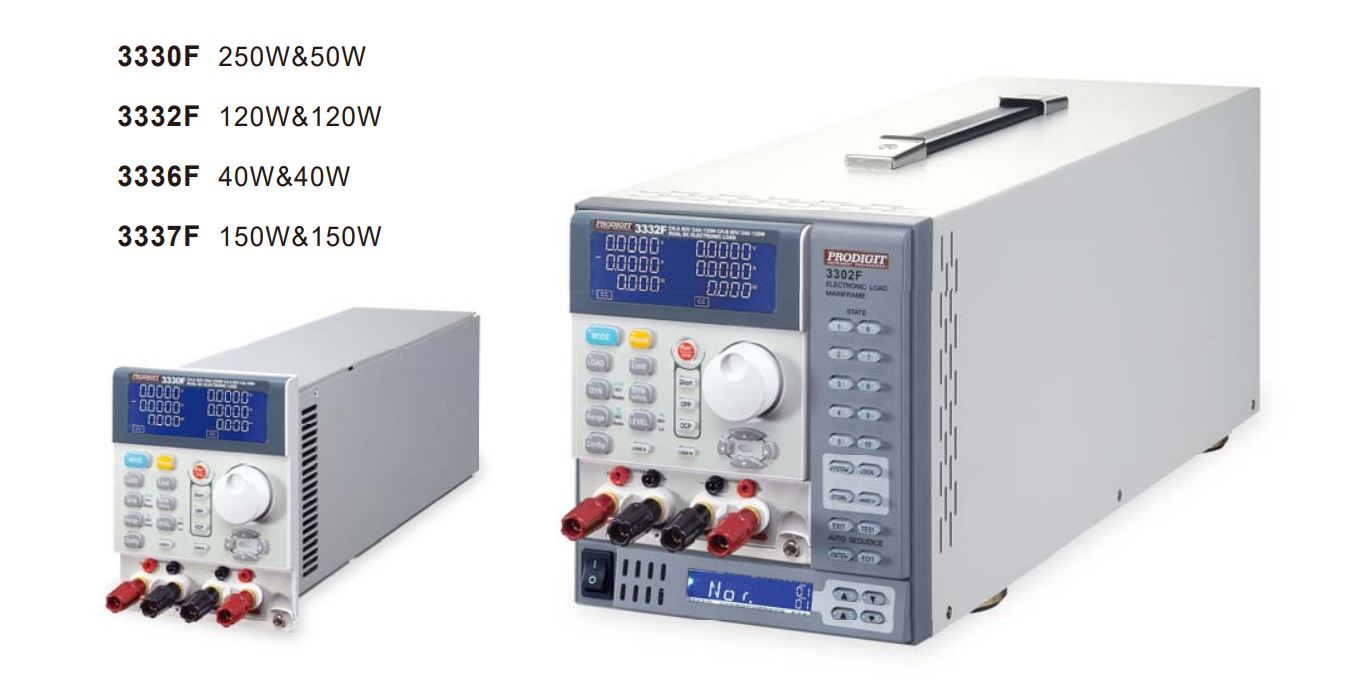

3330F Series
3330F Series Dual DC Electronic Load
- 용량40 ~ 250w
- 전압0 ~ 80V
- 전류3 ~ 60A
- 기타메인프레임 장착 DC 모듈로 하나의 모듈에서 듀얼채널 출력 가능
- 예상가격 견적문의
PRODUCT
DC 전자부하기로서 CC(정전류), CR(정저항), CV(정전압), Dynamic Mode (과도부하응답특성) 모드를 지원하며, Dual 4½ digit 로 전압, 전류를 표시해줍니다.
한 모듈에 2개의 채널로 구성되어 있습니다.
특징
◐ 5 digital V / A/W Meter.
◐ Isolated two loads unit within one module.
◐ Large LCD Display、setting values can be adjusted by rotary knob or push button.
◐ 2 sets V. A. W. values can be displayed simultaneously.
◐ OCP、OPP test function.
◐ Can be configured in 3302F〔single channel mainframe〕、3305F〔two channels mainframe〕or 3300F〔four channels mainframe〕and the mainframe with 150 sets Store / Recall memory.
◐ Power ON status value can be set.
◐ Flexible CC. CR, CV, CP, Dynamic and Short operation modes.
◐ SHORT time setting and SHORT_VH, SHORT_VL setting function.
◐ Protections against V, I, W, and °C.
◐ Voltage meter display the polarity positive(” + ”)or negative(” - ”)is selectable.
◐ SYNC. Load ON function.
◐ Optional Interface : GPIB、RS232、USB、LAN
