3310G Series

3310G Series DC Electronic Load

PRODUCT



PRODIGIT3310G DC Electronic Load1/2/4 채널 메인프레임에 결합하여 사용하는 1채널 DC전자부하기 모듈입니다.
CC / CR / CP / CC+CV / DYNAMIC / Short Mode, MPPT CC/CR/CV 테스트 기능을 갖추고 있습니다.

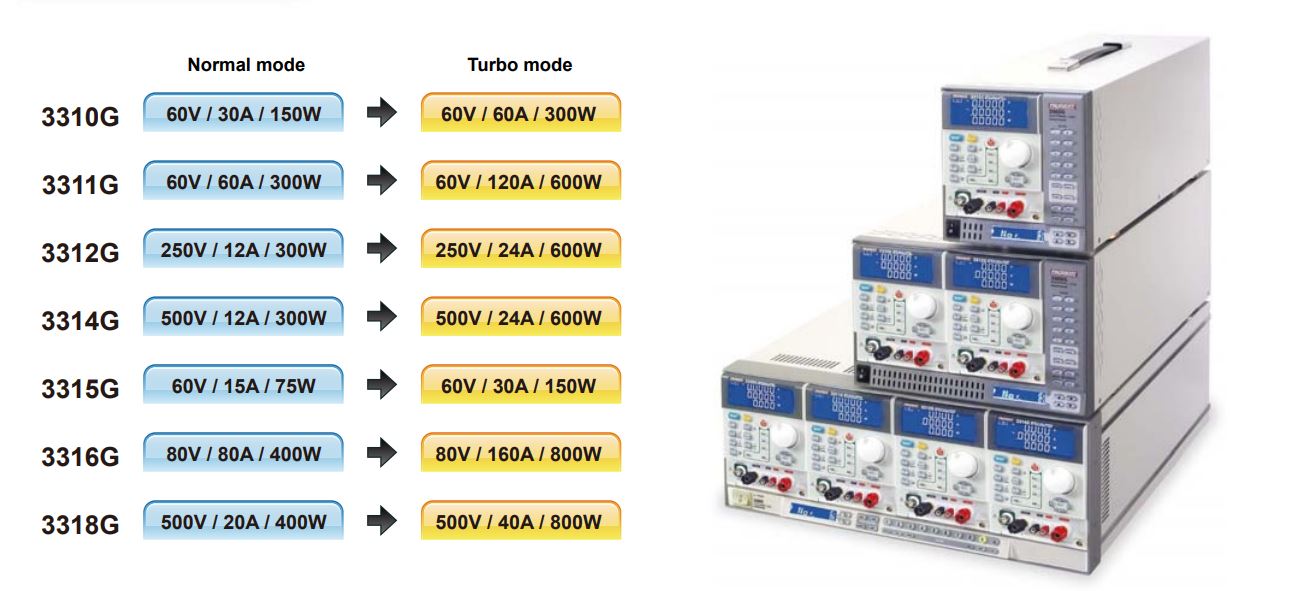

터보모드를 지원하여 일시적으로 최대 2배의 출력을 내보내 과부하 테스트 등에 활용이 용이합니다.

특징

5 digital V / A / W Meter can be displayed on Large LCD display simultaneously.
Flexible CC, CR, CV, CP, CC + CV, CP + CV, Dynamic and short circuit operation modes.
Built-in test modes include Battery Discharge, BMS, Fuse/Breaker Trip/Non-Trip, Short circuit, OCP, OPP test modes.
Not only CC, CR, and CP mode have parallel operation functions, but CV mode also has parallel operation functions.
Turbo mode can withstand up to 2 times the current and power electronic load within 2 sec. periodmost fit Fuse/Breaker and BMSShort circuitOCPOPP test.
Provide battery BMS protection test function.
High Slew Rate3310G up to 5A/uS3311G up to 10A/uS3315G up to 2.5A/uS
Support MPPT CCCRCV test function for solar panel.
Short circuit duration can be set within short circuit test.
Can set the power-on status value.
Voltage meter display can be configured as polarity positive”+”or negative.
Synchronous parallel execution functionSYNC. Load on
Can be configured in the Mainframe of 3302Gsingle channel]、3305Gdual channelsor 3300GQuad channels],each mainframe has up to 150 sets Store/Recall memory.
Optional programmable NTC Resistorinstalled in mainframe
Optional Interface : GPIBRS232USBLAN.
Protection against V, I, W, and .
Optional 9923 load current waveform generator to provide the battery actual discharge current waveform simulation.
