JYK Series

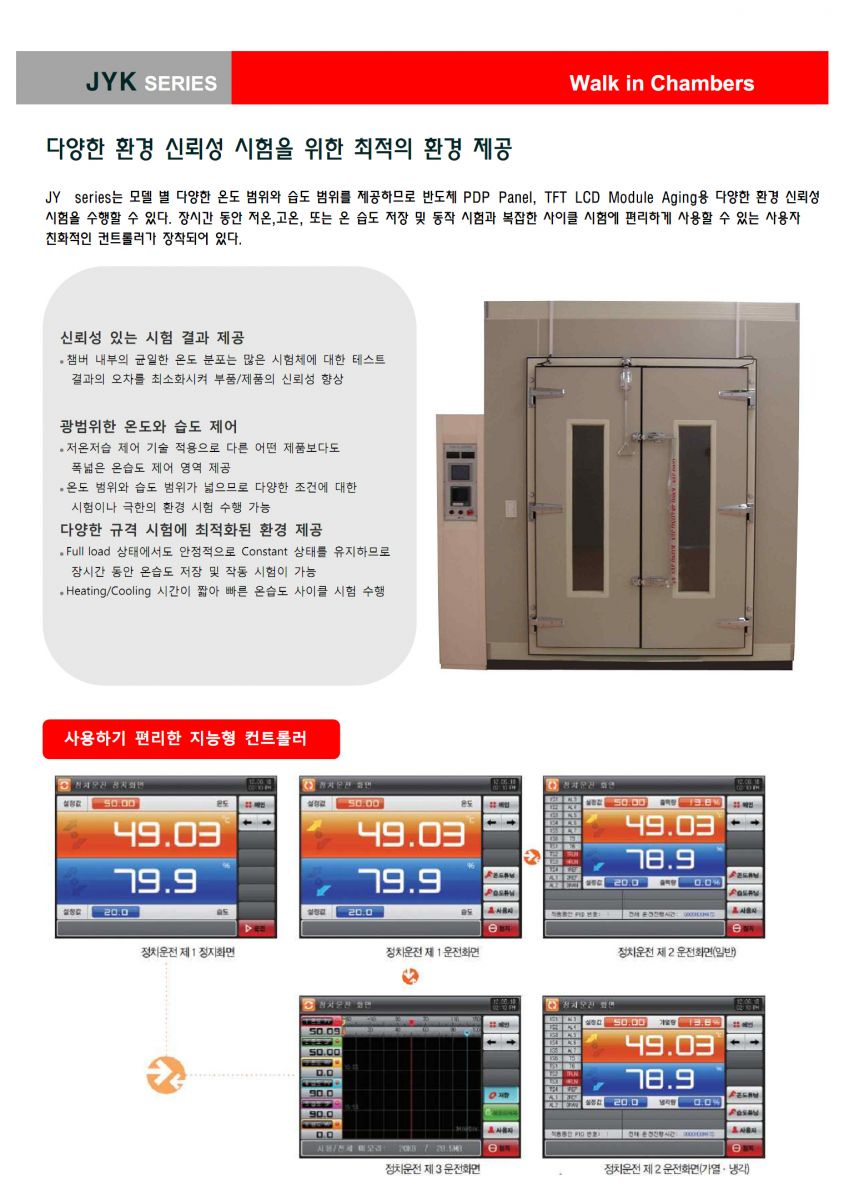

JYK Series 대형 항온항습챔버
- 제품설명JYK Series 대형 항온항습챔버
- 제조사제이와이테크
- 원산지한국
- 예상가격 견적문의
-
제품사양
| Model | JYK-2000 | JYK-3000 | JYK-52000 | |
|---|---|---|---|---|
| Dimension (WxDxH)mm | Internal | 2000 x 2000 x 2400 | 3000 x 3000 x 2400 | 5000 x 5000 x 240 |
| External | 2200 x 2600 x 2800 | 3200 x 3600 x 2800 | 5200 x 5600 x 2800 | |
| Control system | PID auto-tuning Control System (lnherently distinction safety) | |||
| Controller | Type | 5.7"의 color LCD touch screen type | ||
| Resol. temp. | ±0.01℃ | |||
| Resol. humid. | ±0.1% RH | |||
| Temperature | Working Range | -40℃ ~ 150℃ | ||
| Uniformity | ±1℃ | |||
| Humidity | Working range | 30~98% RH | ||
| Uniformity | ±3.0% RH | |||
| Time | Heating | 분당 ℃ | ||
| Cooling | 분당 1℃ | |||
| Cooling System | Mechanical single stage refrigerator system (air-cooled condenser) | |||
| Material | Internal | SUS #304(polish) | ||
| External | Painted steel with power coating | |||
| Sensor | Temperature | Pt 100Ω | ||
| Humidity | Electronic sensor | |||
| Electric requirement | 220VAC, 3Ø,60Hz / 380VAC, 3Ø 60Hz | |||
